Palo Alto Networks Enterprise Firewall PA-820
Next-Generation Firewall for Enterprise Branch Offices and Midsized Businesses

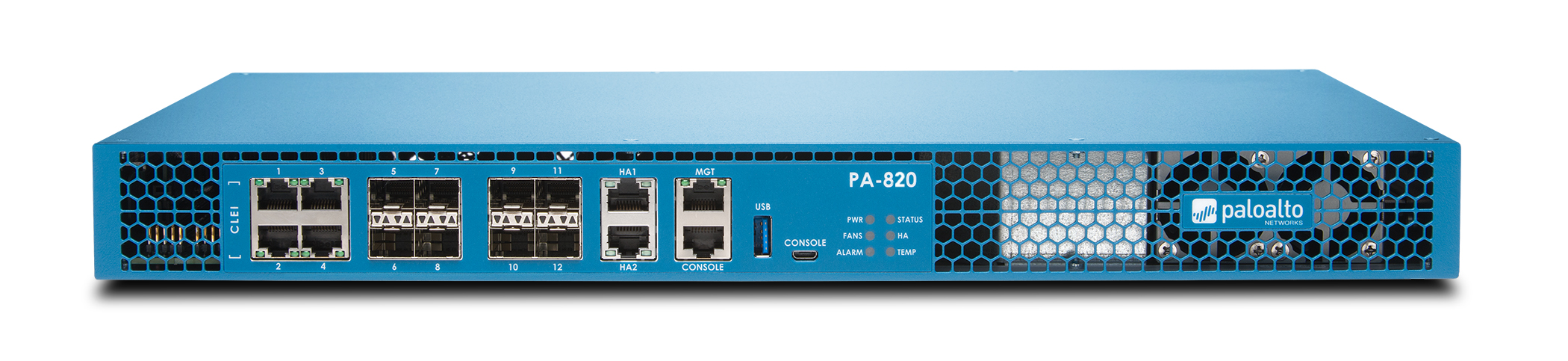

Palo Alto Networks Enterprise Firewall PA-820

Palo Alto Networks Products

PA-800 Series Hardware
  • Palo Alto Networks PA-820
    #PAN-PA-820
    List Price: $4,500.00
    Our Price: $4,275.00

Click here to jump to more pricing!

Overview:

Classifies all applications, on all ports, all the time
  • Identifies the application, regardless of port, encryption (SSL or SSH), or evasive technique employed
  • Uses the application, not the port, as the basis for all of your safe enablement policy decisions: allow, deny, schedule, inspect and apply traffic-shaping
  • Categorizes unidentified applications for policy control, threat forensics or App-ID™ application identification technology development
Enforces security policies for any user, at any location
  • Deploys consistent policies to local and remote users running on the Windows®, Mac® OS X®, Linux®, Android™ or Apple® iOS platforms
  • Enables agentless integration with Microsoft® Active Directory® and Terminal Services, LDAP, Novell® eDirectory™ and Citrix®
  • Easily integrates your firewall policies with 802.1X wireless, proxies, NAC solutions, and any other source of user identity information
Prevents known and unknown threats
  • Blocks a range of known threats, including exploits, malware and spyware, across all ports, regardless of common threat-evasion tactics employed
  • Limits the unauthorized transfer of files and sensitive data, and safely enables non-work-related web surfing
  • Identifies unknown malware, analyzes it based on hundreds of malicious behaviors, and then automatically creates and delivers protection

Palo Alto Networks PA-800 Series next-generation firewall appliances, comprised of the PA-820 and PA-850, are designed to secure enterprise branch offices and midsized businesses.

The controlling element of the Palo Alto Networks® PA-800 Series appliances is PAN-OS® security operat- ing system, which natively classifies all traffic, inclusive of applications, threats and content, and then ties that traffic to the user, regardless of location or device type. The application, content and user – in other words, the business elements that run your business – are then used as the basis of your security policies, resulting in an improved security posture and a reduction in incident response time.

Performance and Capacities1

PA-850

PA-820

Firewall throughput (App-ID)2, 4

1.9 Gbps

940 Mbps

Threat prevention throughput3, 4

780 Mbps

610 Mbps

IPsec VPN throughput2, 4

  500 Mbps

400 Mbps

New sessions per second5

 9,500

8,300

Max sessions

 192,000

128,000
  1. Performance and capacities are measured under ideal testing conditions.
  2. Firewall throughput measured with App-ID and User-ID features enabled utilizing 64K HTTP transactions
  3. Threat prevention throughput measured with App-ID, User-ID, IPS, AntiVirus and Anti-Spyware features enabled utilizing 64K HTTP transactions
  4. New sessions per second is measured with 4K HTTP transactions
  5. Adding virtual systems base quantity requires a separately purchased license

Networking Features:

PA-800 Series appliances support a wide range of networking features that enable you to more easily integrate our security features into your existing network.

Interface Modes
L2, L3, Tap, Virtual wire (transparent mode)
Routing
OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, Static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE)
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
IPv6
L2, L3, Tap, Virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire and SSL decryption
SLAAC
IPsec VPN
Key exchange: Manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
VLANs
802.1q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address Translation (NAT)
NAT modes (IPv4): Static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: Dynamic IP reservation, tunable dynamic IP and port oversubscription
High Availability
Modes: Active/Active, Active/Passive
Failure detection: Path monitoring, interface monitoring

Technical Specifications:

Management I/O
  1. 10/100/1000 out-of-band management port
  2. 10/100/1000 high availability
(1) RJ-45 console port (1) USB port (1) Micro USB console port
Storage Capacity
240GB SSD
Power Supply (Average Power Consumption)
PA-850: Two 500W AC power supplies. One power supply is redundant. (75W) PA-820: 200W power supply. (45W)
Max BTU/hr
256
Input Voltage (Input frequency)
100-240VAC (50-60Hz)
Max Current Consumption
2.0A @ 100VAC,1.0A @ 240VAC (PA-850) 1.0A @ 100VAC,0.5A @ 240VAC (PA-820)
Max Inrush Current
1.0A @ 230VAC,1.84A @ 120VAC (PA-850) 0.4A @ 230VAC,0.96A @ 120VAC (PA-820)
Rack Mountable (Dimensions)
PA-850 - 1U, 19” standard rack (1.75”H x 14.5”D x 17.125”W) PA-820 - 1U, 19” standard rack (1.75”H x 14”D x 17.125”W)
Weight (Stand-Alone Device/As Shipped)
PA-850 13.5lbs/21.5 lbs PA-820 11lbs/18 lbs
Safety
cCSAus, CB
EMI
FCC Class A, CE Class A, VCCI Class A
Certifications
See: https://www.paloaltonetworks.com/company/certifications.html
Environment
Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C
Airflow
Front to back

Pricing Notes:

Palo Alto Networks Products

PA-800 Series Hardware
  • Palo Alto Networks PA-820
    #PAN-PA-820
    List Price: $4,500.00
    Our Price: $4,275.00
Accessories
  • Palo Alto Networks PA-820 and PA-850 4 post rack mount kit
    #PAN-PA-1RU-RACK4
    Our Price: $150.00
  • Accessory kit for PA-820 and PA-850
    #PAN-PA-800-ACC
    Our Price: $100.00
  • PA-800 Series shipping boxes - 5 cartons
    #PAN-PA-800-BOX-SET
    Our Price: $100.00
GlobalProtect subscription
  • GlobalProtect subscription year 1, PA-820
    #PAN-PA-820-GP
    Request a Quote for Pricing!
    Get a Quote
  • GlobalProtect subscription renewal, PA-820
    #PAN-PA-820-GP-R
    Request a Quote for Pricing!
    Get a Quote
  • GlobalProtect subscription 3-year prepaid, PA-820
    #PAN-PA-820-GP-3YR
    Request a Quote for Pricing!
    Get a Quote
  • GlobalProtect subscription renewal 3-year prepaid, PA-820
    #PAN-PA-820-GP-3YR-R
    Request a Quote for Pricing!
    Get a Quote
  • GlobalProtect subscription 5-year prepaid, PA-820
    #PAN-PA-820-GP-5YR
    Request a Quote for Pricing!
    Get a Quote
  • GlobalProtect subscription renewal 5-year prepaid, PA-820
    #PAN-PA-820-GP-5YR-R
    Request a Quote for Pricing!
    Get a Quote
Threat prevention subscription
  • Threat prevention subscription year 1, PA-820
    #PAN-PA-820-TP
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription renewal, PA-820
    #PAN-PA-820-TP-R
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription 3-year prepaid, PA-820
    #PAN-PA-820-TP-3YR
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription renewal 3-year prepaid, PA-820
    #PAN-PA-820-TP-3YR-R
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription 5-year prepaid, PA-820
    #PAN-PA-820-TP-5YR
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription renewal 5-year prepaid, PA-820
    #PAN-PA-820-TP-5YR-R
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription for device in an HA pair year 1, PA-820
    #PAN-PA-820-TP-HA2
    Request a Quote for Pricing!
    Get a Quote
  • Threat prevention subscription 3 year prepaid for device in an HA pair, PA-820
    #PAN-PA-820-TP-3YR-HA2
    Request a Quote for Pricing!
    Get a Quote
PANDB URL filtering subscription
  • PANDB URL filtering subscription year 1, PA-820
    #PAN-PA-820-URL4
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription renewal, PA-820
    #PAN-PA-820-URL4-R
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription 3-year prepaid, PA-820
    #PAN-PA-820-URL4-3YR
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription renewal 3-year prepaid, PA-820
    #PAN-PA-820-URL4-3YR-R
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription 5-year prepaid, PA-820
    #PAN-PA-820-URL4-5YR
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription renewel 5-year prepaid, PA-820
    #PAN-PA-820-URL4-5YR-R
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription for device in an HA pair year 1, PA-820
    #PAN-PA-820-URL4-HA2
    Request a Quote for Pricing!
    Get a Quote
  • PANDB URL filtering subscription for device in an HA pair 3 YR, PA-820
    #PAN-PA-820-URL4-3YR-HA2
    Request a Quote for Pricing!
    Get a Quote
WildFire subscription
  • WildFire subscription year 1, PA-820
    #PAN-PA-820-WF
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription renewal, PA-820
    #PAN-PA-820-WF-R
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription 3-year prepaid, PA-820
    #PAN-PA-820-WF-3YR
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription renewal 3-year prepaid, PA-820
    #PAN-PA-820-WF-3YR-R
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription 5-year prepaid, PA-820
    #PAN-PA-820-WF-5YR
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription renewal 5-year prepaid, PA-820
    #PAN-PA-820-WF-5YR-R
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription year 1 for device in HA pair, PA-820
    #PAN-PA-820-WF-HA2
    Request a Quote for Pricing!
    Get a Quote
  • WildFire subscription 3 Yr period for device in HA pair, PA-820
    #PAN-PA-820-WF-3YR-HA2
    Request a Quote for Pricing!
    Get a Quote
Premium support
  • Premium support year 1, PA-820
    #PAN-SVC-BKLN-820-1YR
    Request a Quote for Pricing!
    Get a Quote
  • Premium support year 1 renewal, PA-820
    #PAN-SVC-BKLN-820-R
    Request a Quote for Pricing!
    Get a Quote
  • Premium support 3-year prepaid, PA-820
    #PAN-SVC-BKLN-820-3YR
    Request a Quote for Pricing!
    Get a Quote
  • Premium support 3-year prepaid renewal, PA-820
    #PAN-SVC-BKLN-820-3YR-R
    Request a Quote for Pricing!
    Get a Quote
  • Premium support 5 year prepaid, PA-820
    #PAN-SVC-BKLN-820-5YR
    Request a Quote for Pricing!
    Get a Quote
  • Premium support 5 year prepaid renewal, PA-820
    #PAN-SVC-BKLN-820-5YR-R
    Request a Quote for Pricing!
    Get a Quote
Standard support
  • Standard support year 1, PA-820
    #PAN-SVC-STND-820
    Request a Quote for Pricing!
    Get a Quote
  • Standard support year 1 renewal, PA-820
    #PAN-SVC-STND-820-R
    Request a Quote for Pricing!
    Get a Quote
  • Standard support 3 year prepaid, PA-820
    #PAN-SVC-STND-820-3YR
    Request a Quote for Pricing!
    Get a Quote
  • Standard support 3 year prepaid renewal, PA-820
    #PAN-SVC-STND-820-3YR-R
    Request a Quote for Pricing!
    Get a Quote
