Palo Alto Networks PA Series Firewall

Next-generation firewall model families include Palo Alto Networks PA-4000 Series and the PA-2000 Series, along with the newly released PA-500 and range from 250Mbps to 10Gbps in throughput capacity. Palo Alto Networks next-generation firewalls are built on a strong networking foundation, offer a familiar policy management interface and offer unprecedented features for your security infrastructure.

Palo Alto Networks Enterprise Firewall - PA-200 Series

The PA-200 is small and quiet enough to sit on a desk, yet powerful enough to deliver next-generation firewall security to a distributed enterprise office. This new platform extends visibility and control over applications, users and content into enterprise branch offices.

PA-200 Firewall

  • 100 Mbps firewall throughput(App-ID enabled)
  • 50 Mbps threat prevention throughput
  • 50 Mbps IPSec VPN throughput
  • 64,000 max sessions
  • 1,000 new sessions per second
  • 25 IPSec VPN tunnels/tunnel interfaces
  • 25 SSL VPN Users
  • 10 security zones
  • 250 max number of policies


Palo Alto Networks Enterprise Firewall - PA-220 Series

The PA-220 next-generation firewall safely enables applications and prevents modern cyber threats. Suitable for small organizations, branch offices and retail locations, the PA-220 desktop form factor brings you the same PAN-OS features that protect your largest data centers, including high availability with active/active and active/passive modes.

The PA-220 provides you interactive visibility and control of applications, users, and content at throughput speeds of up to 500 Mbps. You get redundant power input for increased reliability, a fanless design for quiet operation, and solid state disks to remove any moving parts. The PA-220 also simplifies the deployments of large numbers of firewalls through the USB port.

PA-220 Firewall
  • 500 Mbps firewall throughput (App-ID enabled)
  • 150 Mbps threat prevention throughput
  • 100 Mbps IPSec VPN throughput
  • 64,000 max sessions
  • 4,200 new sessions per second
  • 250 IPSec VPN tunnels/tunnel interfaces
  • 3 virtual routers
  • 15 security zones
  • 250 max number of policies

Palo Alto Networks Enterprise Firewall - PA-500 Series

The Palo Alto Networks enterprise firewall PA-500 is ideally suited for Internet gateway deployments within medium to large branch offices and medium sized enterprises to ensure network security and threat prevention. The Palo Alto firewall PA-500 manages network traffic flows with high performance processing and dedicated memory for networking, security, threat prevention, URL filtering and management. Palo Alto Networks next-generation firewall's high speed backplane smoothes the pathway between processors and the separation of data and control plane ensures that management access is always available, irrespective of the traffic load.

PA-500 Firewall

  • 250 Mbps firewall throughput (App-ID enabled)
  • 100 Mbps threat prevention throughput
  • 50 Mbps IPSec VPN throughput
  • 64,000 max sessions
  • 7,500 new sessions per second
  • 250 IPSec VPN tunnels/tunnel interfaces
  • 100 SSL VPN Users
  • 3 virtual routers
  • N/A virtual systems (base/max)
  • 20 security zones
  • 1,000 max number of policies

Palo Alto Networks Enterprise Firewall - PA-800 Series

The PA-800 Series next-generation firewalls prevent cyber threats and safely enable applications. The series includes PA-820 and PA-850, which are based on the same architectural foundation as all of our next-generation firewalls.

The PA-800 Series of appliances provide advanced visibility and control of applications, users, and content at throughput speeds of up to 1.9 Gbps and with I/O options of up to four 10 Gigabit SFP+ ports. Redundant power supplies provide hardware resiliency, and the USB port allows rapid deployment of large numbers of firewalls with consistent configuration.

PA-800 Firewall

  • 940 Mbps firewall throughput (App-ID enabled)
  • 610 Mbps threat prevention throughput
  • 400 Mbps IPSec VPN throughput
  • 128,000 max sessions
  • 8,300 new sessions per second
  • 1000 IPSec VPN tunnels/tunnel interfaces
  • 5 virtual routers
  • 30 security zones
  • 1,500 max number of policies

  • 1.9 Gbps firewall throughput (App-ID enabled)
  • 780 Mbps threat prevention throughput
  • 400 Mbps IPSec VPN throughput
  • 192,000 max sessions
  • 9,500 new sessions per second
  • 1000 IPSec VPN tunnels/tunnel interfaces
  • 5 virtual routers
  • 40 security zones
  • 1,500 max number of policies

Palo Alto Networks Enterprise Firewall - PA 3000 Series

The Palo Alto Networks™ PA-3000 Series is comprised of two high performance platforms, the PA-3050 and the PA-3020, both of which are targeted at high speed Internet gateway deployments. The PA-3000 Series manages network traffic flows using dedicated processing and memory for networking, security, threat prevention and management. Safely enable applications, users, and content at throughput speeds of up to 4 Gbps using the PA-3050 or the PA-3020. Predictable, multi-Gbps performance is delivered via dedicated, function-specific processing for networking, security, content inspection, and management.

PA-3000 Series

  • 2 Gbps firewall throughput (App-ID enabled)
  • 1 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 250,000 max sessions
  • 50,000 new sessions per second
  • 1,000 IPSec VPN tunnels/tunnel interfaces
  • 1,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max)
  • 40 security zones
  • 2,500 max number of policies

  • 4 Gbps firewall throughput (App-ID enabled)
  • 2 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 500,000 max sessions
  • 50,000 new sessions per second
  • 2,000 IPSec VPN tunnels/tunnel interfaces
  • 2,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max)
  • 40 security zones
  • 5,000 max number of policies

  • 4 Gbps firewall throughput (App-ID enabled)
  • 2 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 500,000 max sessions
  • 50,000 new sessions per second
  • 2,000 IPSec VPN tunnels/tunnel interfaces
  • 2,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max)
  • 40 security zones
  • 5,000 max number of policies


Palo Alto Networks Enterprise Firewall - PA 5000 Series

The Palo Alto Networks™ PA-5000 Series is comprised of three high performance models, the PA-5060, the PA-5050 and the PA-5020, all of which are targeted at high speed datacenter and Internet gateway deployments. Use the PA-5060, PA-5050, and PA-5020 to safely enable applications, users, and content in high-speed datacenter, large Internet gateway, service provider, and multi-tenant environments. Predictable throughput levels of up to 20 Gbps are achieved using dedicated, function-specific processing for networking, security, content inspection, and management.

PA-5000 Series

  • 5 Gbps firewall throughput (App-ID enabled)
  • 2 Gbps threat prevention throughput
  • 2 Gbps IPSec VPN throughput
  • 1,000,000 max sessions
  • 120,000 new sessions per second
  • 2,000 IPSec VPN tunnels/tunnel interfaces
  • 5,000 SSL VPN Users
  • 20 virtual routers
  • 10/20 virtual systems (base/max)
  • 80 security zones
  • 10,000 max number of policies

  • 10 Gbps firewall throughput (App-ID enabled)
  • 5 Gbps threat prevention throughput
  • 4 Gbps IPSec VPN throughput
  • 2,000,000 max sessions
  • 120,000 new sessions per second
  • 4,000 IPSec VPN tunnels/tunnel interfaces
  • 10,000 SSL VPN Users
  • 125 virtual routers
  • 25/125 virtual systems (base/max)
  • 500 security zones
  • 20,000 max number of policies

  • 20 Gbps firewall throughput (App-ID enabled)
  • 10 Gbps threat prevention throughput
  • 4 Gbps IPSec VPN throughput
  • 4,000,000 max sessions
  • 120,000 new sessions per second
  • 8,000 IPSec VPN tunnels/tunnel interfaces
  • 20,000 SSL VPN Users
  • 225 virtual routers
  • 25/225 virtual systems (base/max)
  • 900 security zones
  • 40,000 max number of policies



Palo Alto Networks Enterprise Firewall - PA 5200 Series

The PA-5200 Series next-generation firewalls prevent threats, and safely enable applications, across a diverse set of high-performance use cases (e.g., Internet Gateway, Data Center, and Service Provider environments). The series includes the PA-5260, PA-5250, and PA-5220 which provide predictable performance with deep visibility into and control over all traffic, including encrypted traffic.

The PA-5200 Series enables you to secure your organization through advanced visibility and control of applications, users, and content at throughput speeds of up to 72 Gbps. Dedicated processing resources assigned to networking, security, signature matching, and management functions ensure predictable performance.

PA-5200 Series

  • 72.3 Gbps firewall throughput (App-ID enabled)
  • 30.2 Gbps threat prevention throughput
  • 21 Gbps IPSec VPN throughput
  • 32,000,000 max sessions
  • 458,000 new sessions per second
  • 225 virtual routers
  • 25/225 virtual systems (base/max)

  • 35.9 Gbps firewall throughput (App-ID enabled)
  • 20.4 Gbps threat prevention throughput
  • 14 Gbps IPSec VPN throughput
  • 8,000,000 max sessions
  • 348,000 new sessions per second
  • 125 virtual routers
  • 25/125 virtual systems (base/max)

  • 18.5 Gbps firewall throughput (App-ID enabled)
  • 9.2 Gbps threat prevention throughput
  • 5 Gbps IPSec VPN throughput
  • 4,000,000 max sessions
  • 169,000 new sessions per second
  • 20 virtual routers
  • 10/20 virtual systems (base/max)

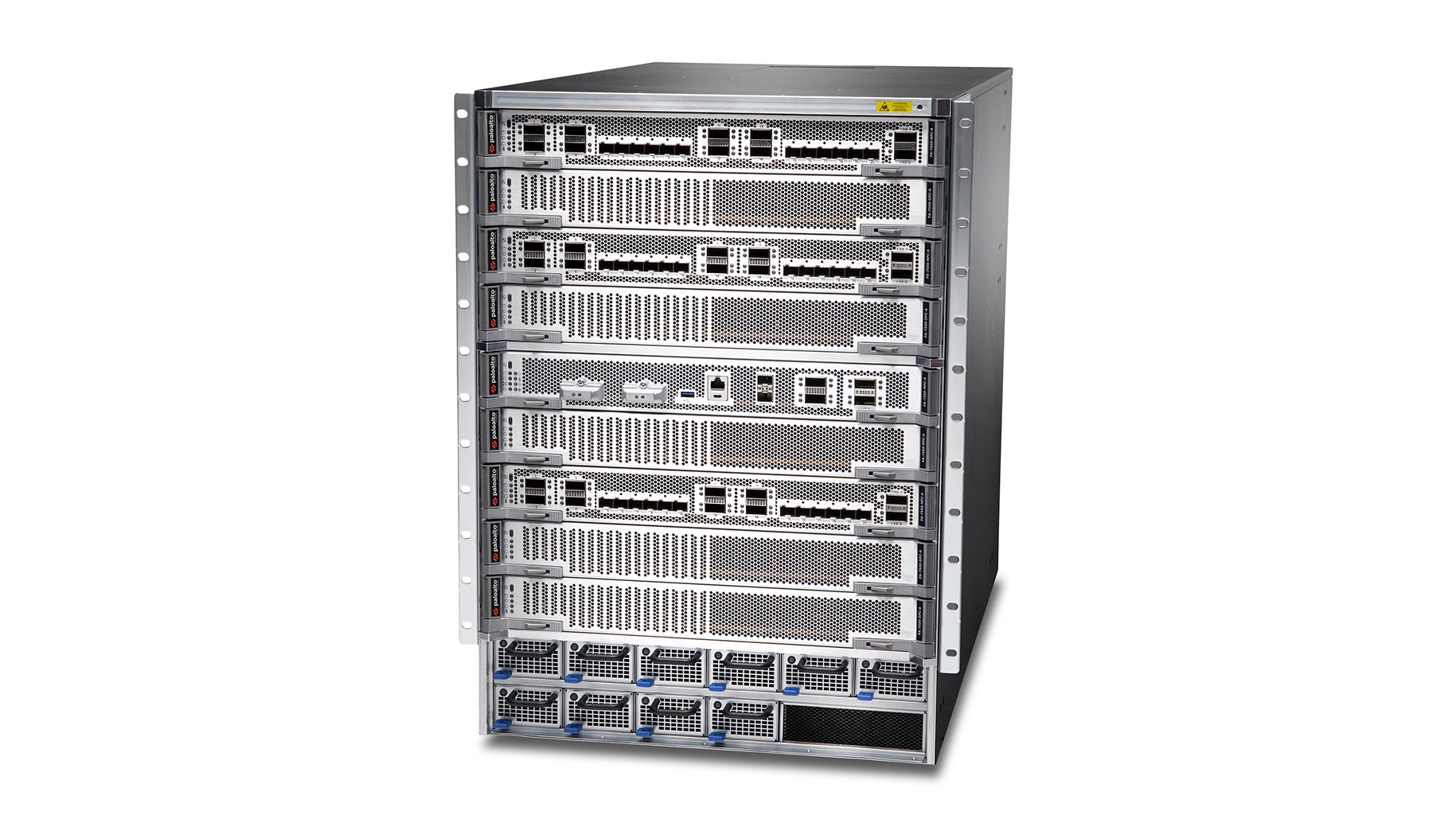

Palo Alto Networks Enterprise Firewall - PA 7000 Series

Our PA-7000 Series high-performance network security appliances offer the perfect blend of power, intelligence and simplicity.

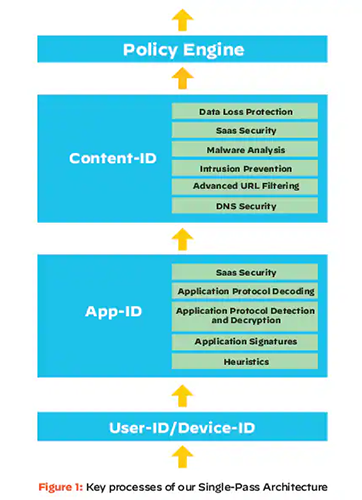

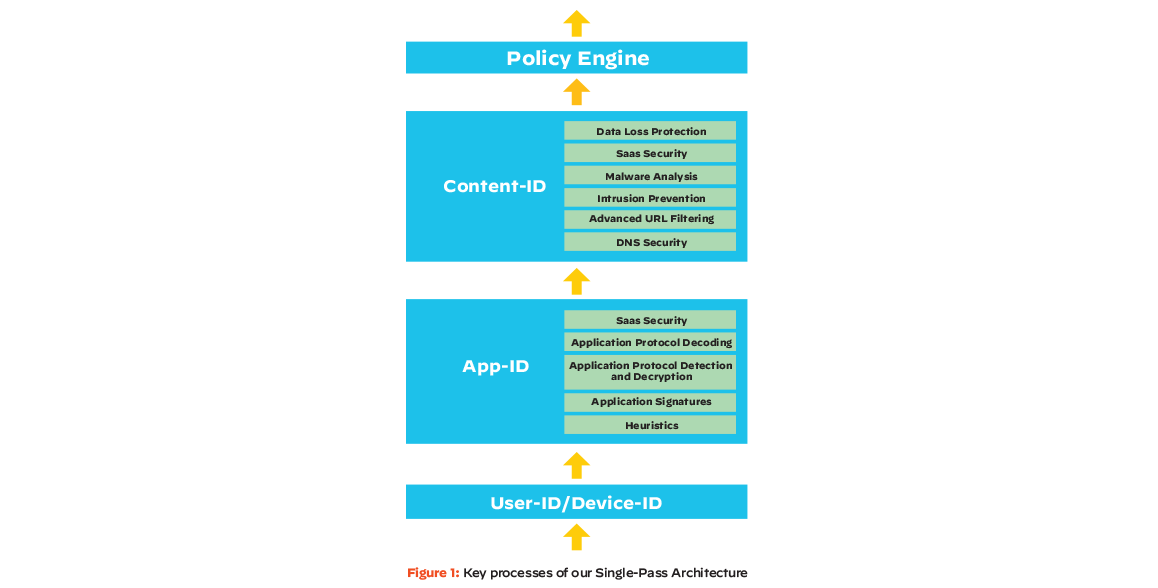

Power – derived from a proven platform architecture that combines an ultra-efficient, single-pass software engine with nearly 700 function-specific processors for networking, security, content inspection, and management.

Intelligence – that optimizes security processing resource utilization and dynamically scales as new computing power becomes available.

Simplicity – resulting from a unified approach toward management and licensing.

PA-7000 Series

  • 120 Gbps firewall throughput (App-ID enabled)
  • 60 Gbps threat prevention throughput
  • 24 Gbps IPSec VPN throughput
  • 24,000,000 max sessions
  • 720,000 new sessions per second
  • 120,000 IPSec VPN tunnels/tunnel interfaces
  • 20,000 SSL VPN Users
  • 225 virtual routers
  • 25/225 virtual systems (base/max)
  • 900 security zones
  • 40,000 max number of policies

  • 200 Gbps firewall throughput (App-ID enabled)
  • 100 Gbps threat prevention throughput
  • 80 Gbps IPSec VPN throughput
  • 1,200,000 max sessions
  • 80,000,000 new sessions per second
  • 225 virtual routers
  • 25/225 virtual systems (base/max)
  • 900 security zones
